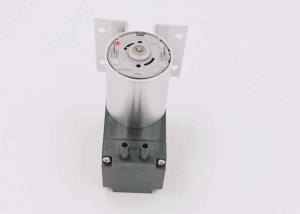

mini micro breathing air diaphragm electric dc powered brush pump
Reliability of miniature pumps
It is decided by the consequences’ severity of micro pump failure , according to their own requirements. The average failure-free continuous running time of high quality products is more than 1000 hours, and some of them are thousands of hours. It is especially important to note that this parameter is measured under full load and uninterrupted operation, and is the worst condition. If the actual use is not full load or continuous operation, the life span will be longer. About how longer it can run, it will depend on the pump working condition. The performance is a test of the manufacturer's technical strength. If just from the appearance of the product, it can be seen, such as the use of special motors rather than ordinary low-priced motor, heavier weight under same size. In addition,according to the price of the product, it may also know a little.
breathing air pump's details show
Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.
breathing air pump's parameter and features
1. DC motor with long lifetime
2. Low noise
3. Continuous operation: The pump can sustain heavy duty work for a day;
4. Compact design, It has good waterproof;
5. Low power consumption, high efficient-save on operating cost;
6. Small and Light-weight, Installation is very simple;
7. Wide application;
8. Perfect for indoor or outdoor use;
9. It can be customized according to customer's technical requirements.
| Model | DX512-1705-3700 |
| Size(mm) | 102.4*70*40 |
| Voltage(V/DC) | 6V/9V/12V/24V |
| Power(W) | 6 |
| Free Flow(L/M) | 11 |
| Pressure(Kpa) | 170 |
| Vacuum(Kpa) | -65 |
| Weight | 300 |
breathing air pump's demension
Unlabeled tolerance is ± 0.1mm.
Pump Size:102.4*70*40mm
Pump Weight:300g;
Outlet:OD 6.5mm, silicone hose suggestion:ID 5mm
Materials:pump body: PC/PPS, diaphragm: EPDM
Because we use imported ball bearing,the pump’s performance is stable and high.
The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.
Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.
Its flow can deliver up to 2 L/min and 18L/M.
Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.
You can choose pump according to our model.
In addition,it can be mounted in any position.
breathing air pump's application
1. breast pump
2. Beauty equipment
3. Vacuum packaging machine
4. Double-headed electric breast pump
5. Portable ozone sterilizer
6. Vacuum sealing machine
7. Beauty massage
breathing air pump's packing and shipping
Packaging:
CTN/PCS: 60PCS
G.W. : 19.5 KG
DIMENSION : 47 * 31 * 25 CM
We can ship pumps to you by sea, by air or by express.
By sea: cheap but long
By air: quick but a a little expensive
By express: door to door, 3-5days to your country by DHL/UPS/FEDEX/TNT and others.
The fastest, but most expensive.
You can choose according to your needs.
Founded in 1999, Yanhua faith is concentrated on mold and plastic injection first.
In 2001, we start our own assemble line to produce pumps.
In 2002, we have our own sales team.
In 2003, we have our over-sales team.
From 2010, we start our own patent, now we have more than 20 patents.
In 2010, yanhua company has passed ISO9001 certification
In 2011years, we have our own trademark”Feinyinsi”.
Today, Yanhua have 12 production lines and 300 skilled workers, our monthly producton capacity is 500,000pcs brushless and brush dc pumps,100,000 piston pumps and 10,000 gear pump and water pump.
The company consists of a professional design department, mold department, injection department , assembling workshop and sales department.
Our mold department and injection department is very matured.
We do mold and plastic injection for more than 20years.
We devote to 20% profit to R & D department, so we have more than 20 patent in research dc micro pump. Our engineers has over 15years professional experience in dc micro pump.
All products of the company have independent intellectual property rights and patents. We can independently design and produce.
Founded in 1999,yanhua Micro pump Technology company is the leading and biggest manufacturer specializing in various DC micro pump and fluid comprehensive solution in China.
Our sale engineers team have more than 16years customers’ service customer and 15years overseas experience in customer service.
Why choose us?
(1) Various pumps in no MOQ and competitive prices.
(2) Professional website platform and one-to-one online service.
(3) We are factory. And we have our own professional R&D department. We accept the order if you want to customize products or design the product.
(4) Fast delivery for normal order, for the bulk quantity, it depends on your specific requirement.
(5) Products are all covered with warranty and insurance.
